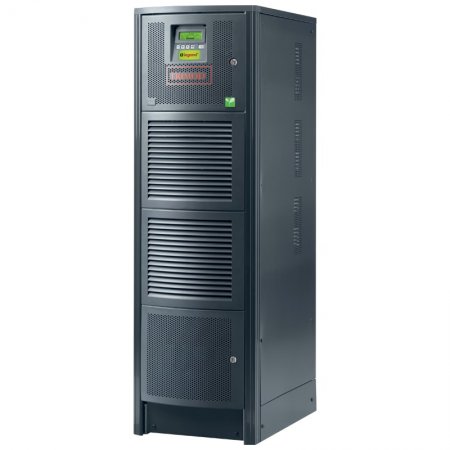

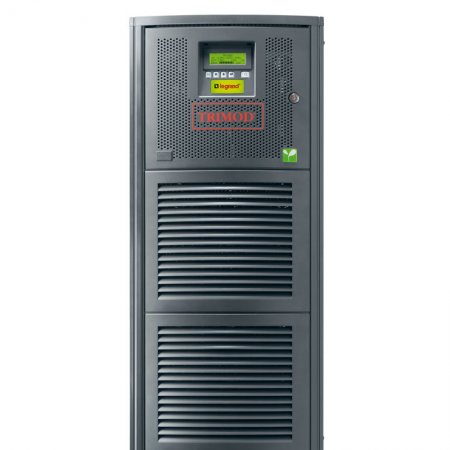

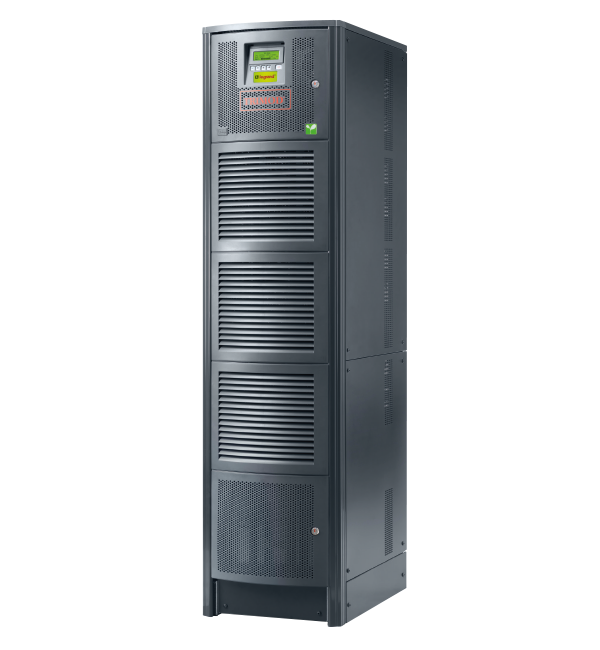

TRIMOD HE

THREE-PHASE MODULAR UPS SYSTEMS

Download

TRIMOD HE UPS is a three-phase uninterruptible power supply on line double conversion with PWM High-Frequency technology, modular architecture with the possibility to have N+X redundancy.

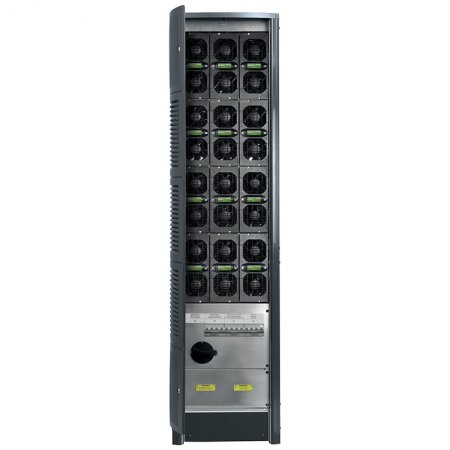

Are made up of individual single phase modules which are redundant and selfconfiguring and it delivers a rated power from 10 to 80kW. Batteries are lead acid, sealed, free maintenance, valve regulated, and arranged, inside the UPS or external battery cabinet, in dedicated Drawers.

trimod he
trimod he 2
trimod he 7
trimod he 8
trimod-he 5
trimod-he 6
trimod-he 7

    General Features

  • Three-phase modular UPS systems
  • Power from 10 to 80 kW NEW
  • VFI-SS-111 on-line double conversion
  • High efficiency up to 96%
  • Power factor 1
  • Adaptable, expandable and redundant solutions (configuration phase In/Out, 3-1)

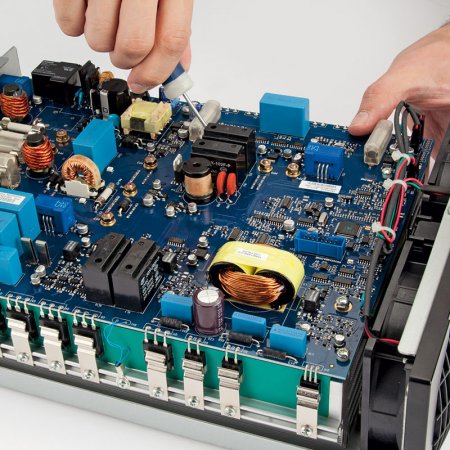

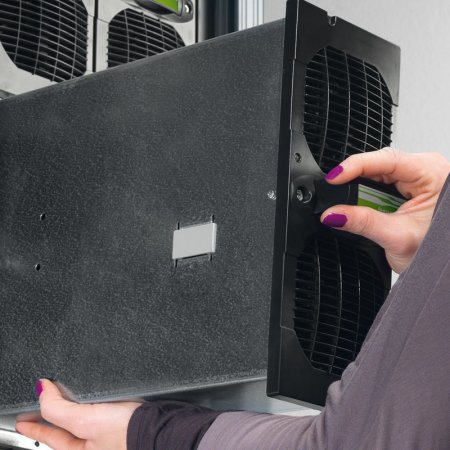

  • Easy and quick maintenance
  • Low environmental impact
  • Diagnostic, monitoring, historical data, parameter setting by display
  • Low size and foot print
  • New cabinet sizes to increase backup time, to improve scalability and to optimize the system

    Functions

  • Multi control board function NEW
  • Dual input function NEW
  • Plug & Play technology NEW
  • Menu available in 7 languages
  • Frequency converter fin 40-70Hz fout 50/60Hz (can be selected by the user)
  • Operates with a power-supply unit
  • Three independent output phases
  • Eco Mode
  • EPS Mode
  • Adjustable output voltage with 1V intervals (190รท245V)
  • Bypass activation speed control
  • Events log with date and time
  • Overall historical data and for each individual power module

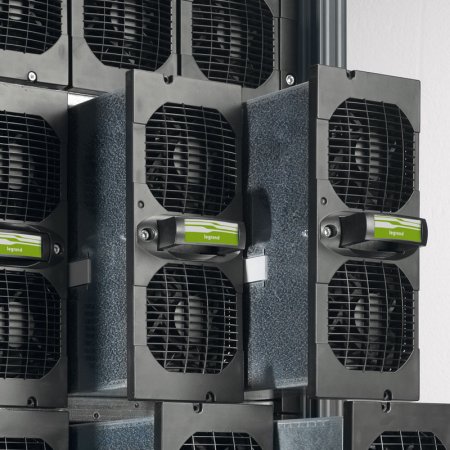

  • Automatic recognition of the power modules
  • Battery module
  • Battery Power modules

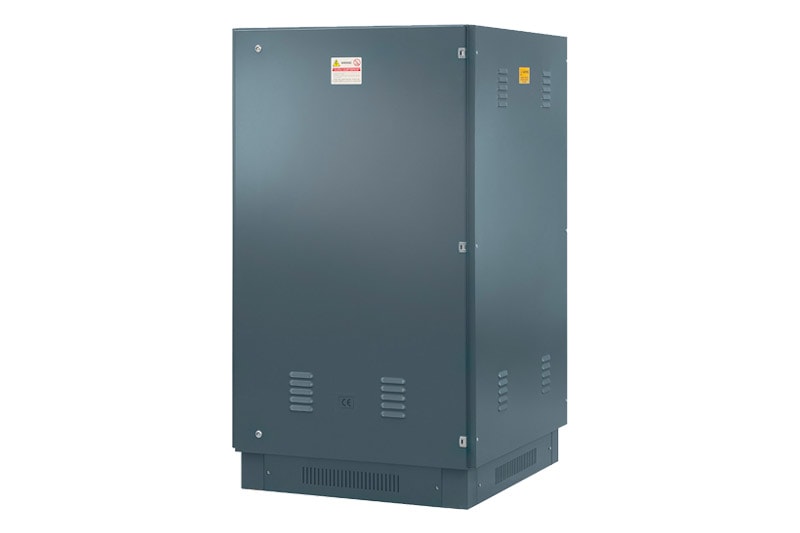

  • accessory battery cabinet
