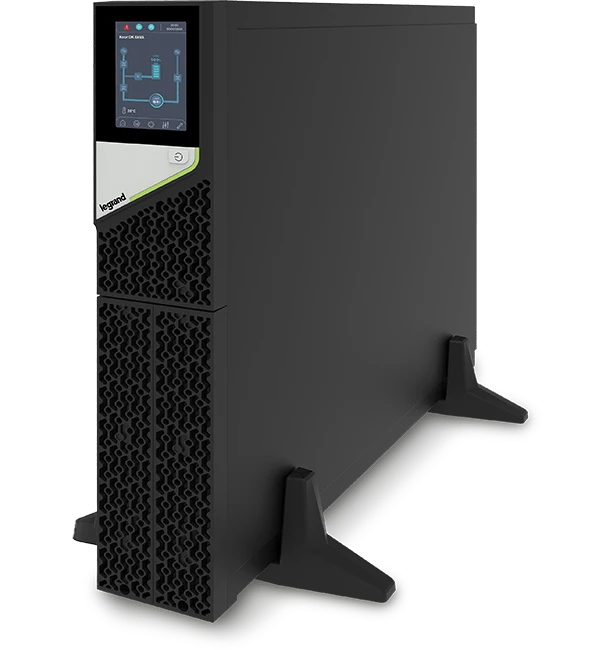

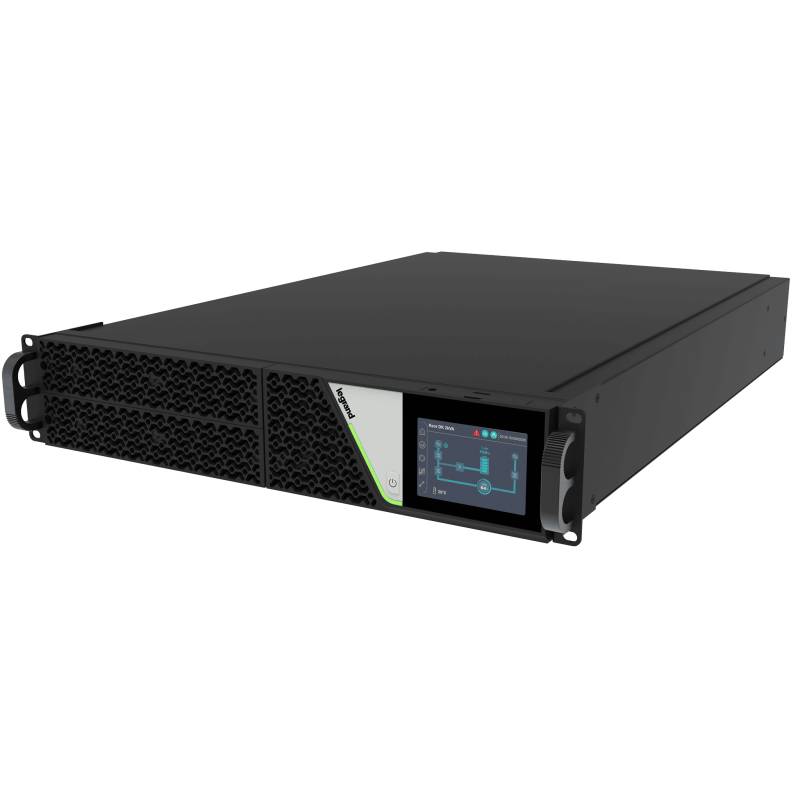

Single Phase UPS -Keor DK

Download

Keor DK is a single-phase UPS with online double conversion technology, designed to ensure uninterrupted operation for even the most critical applications. With a power range from 1 to 20 kVA and compatibility with both VRLA and lithium batteries, it delivers flexibility and reliability in any environment.

Thanks to advanced AC-AC technology, Keor DK achieves up to 96% energy efficiency (reaching 98% in ECO mode) helping to significantly reduce operating costs and environmental impact.

Available in both tower and 19" rack configurations, Keor DK is the ideal solution for those who demand high performance, energy efficiency, and versatility in one powerful system.

General features

1- 10 kVA 1ph RT UPS
10-20 kVA Rack UPS multi in/out phase configuration
Output power factor 1, KVA = KW
VFI-11 online double conversion

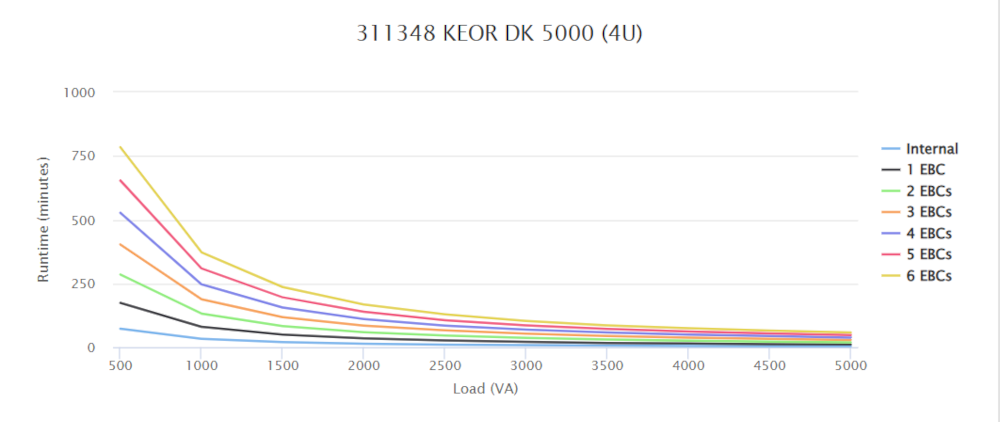

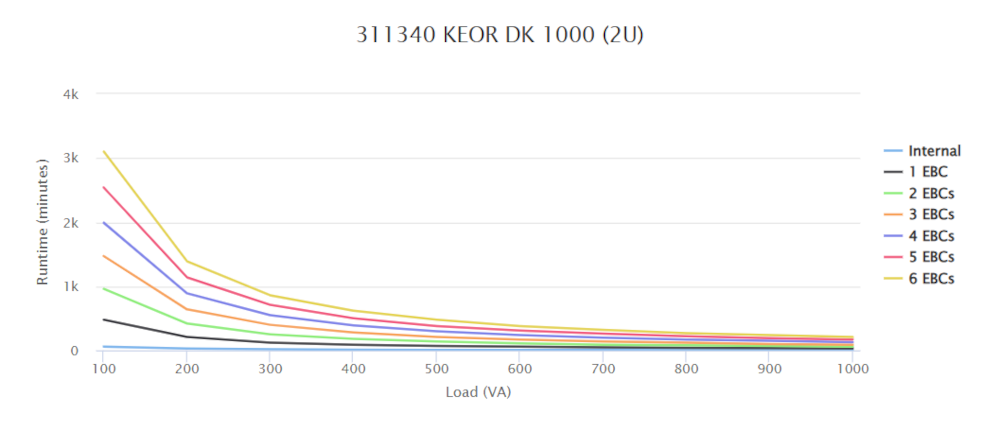

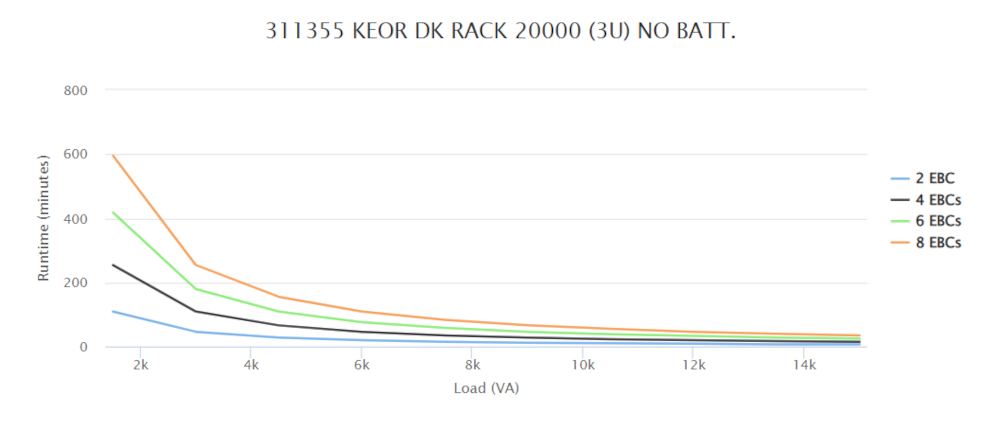

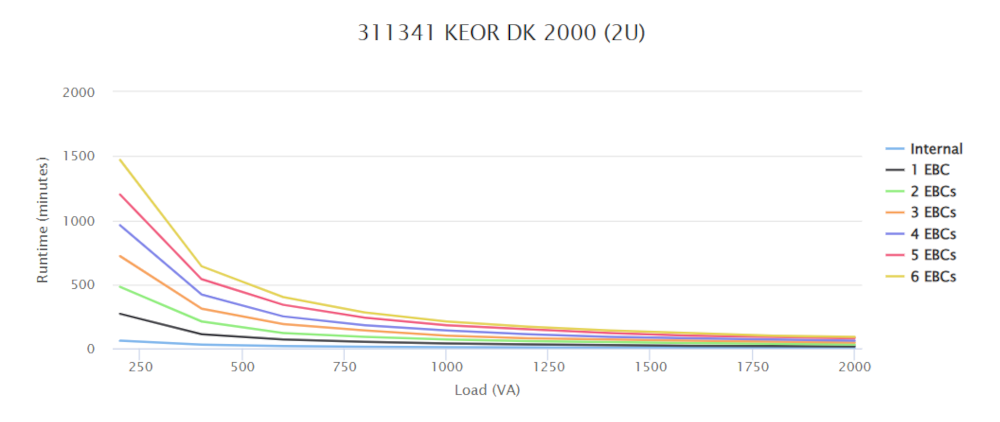

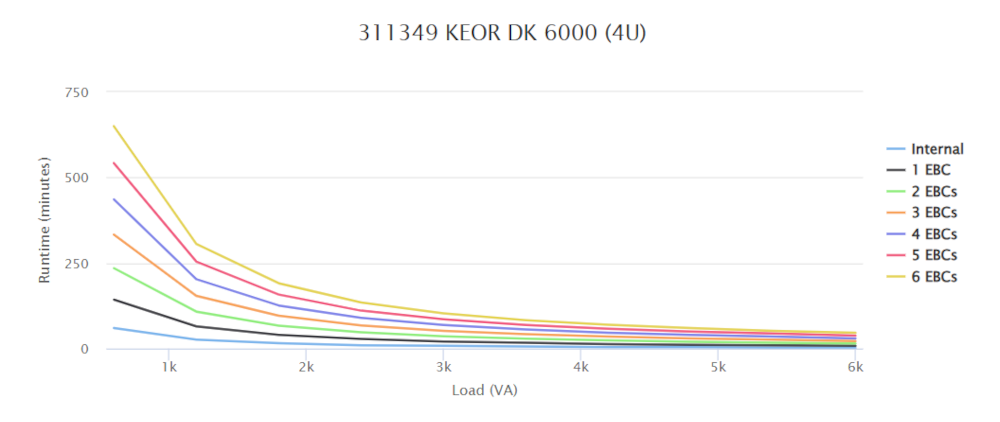

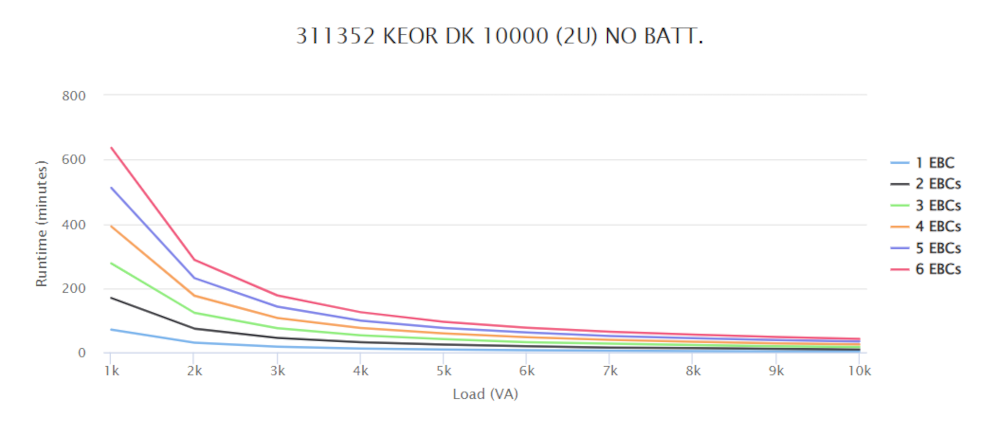

External matching battery cabinet to increase backup time
Double conversion efficiency up to 96%
Efficiency in ECO mode up to 99%
Hot Swappable batteries
Lithium ready

Functions

Easy-to-use touch screen display up to 4.3’’ with gravity sensor
Multicoloured LED status bar
Smart battery management
Automatic and manual bypass (optional) to ensure constant power supply for critical loads
Wide range of input voltages and frequencies
Intelligent communication ports and SNMP management capability
Controlled noise level
Parallelable system starting from 5 kVA

360° viewKEOR DK

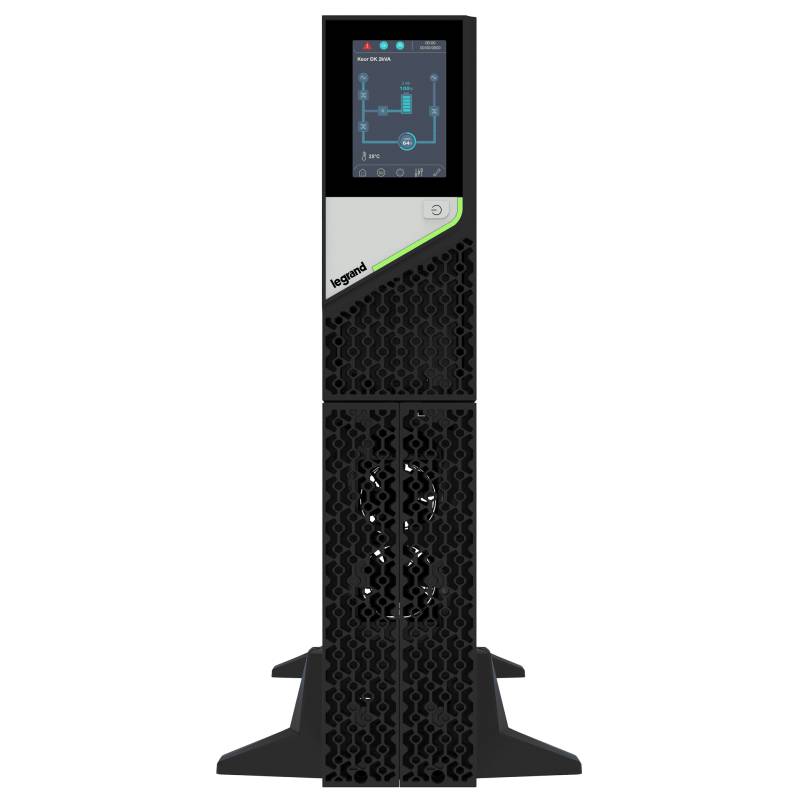

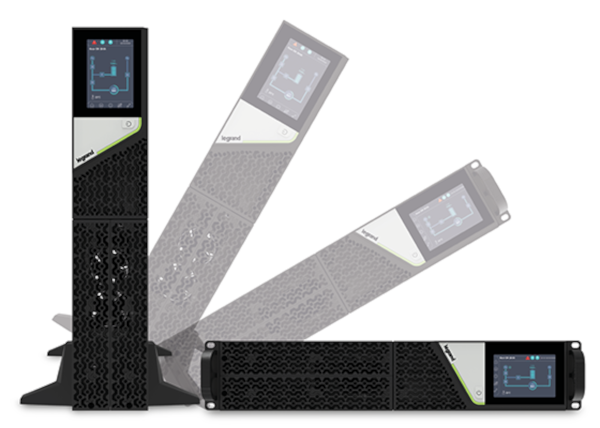

Convertible Rack/Tower 1-10 KVA
Keor DK in the convertible version is equipped with a user-friendly touch screen LCD with a gravity sensor that automatically rotates the screen based on the UPS orientation.

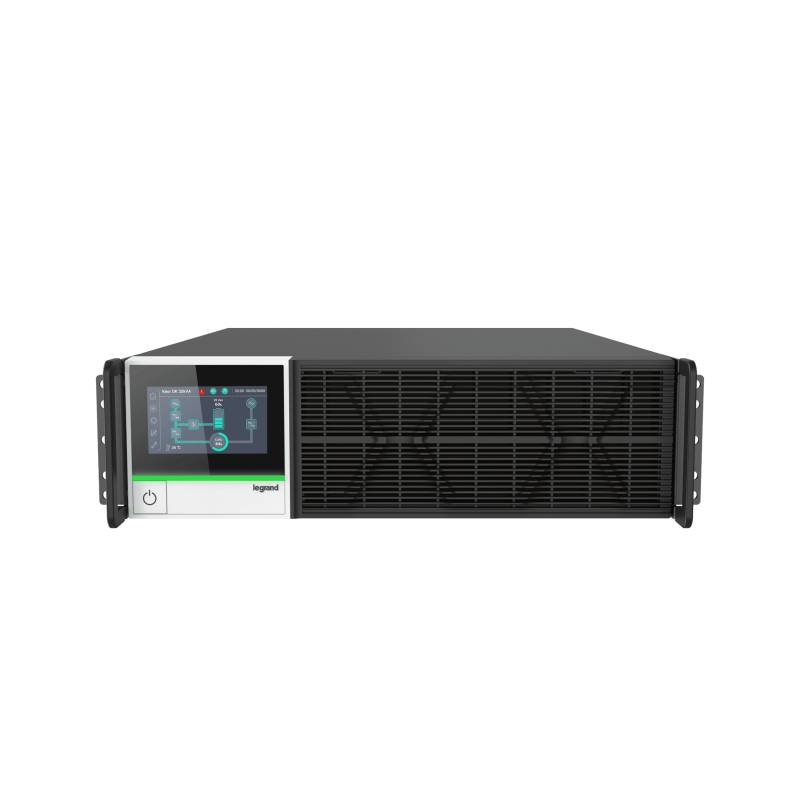

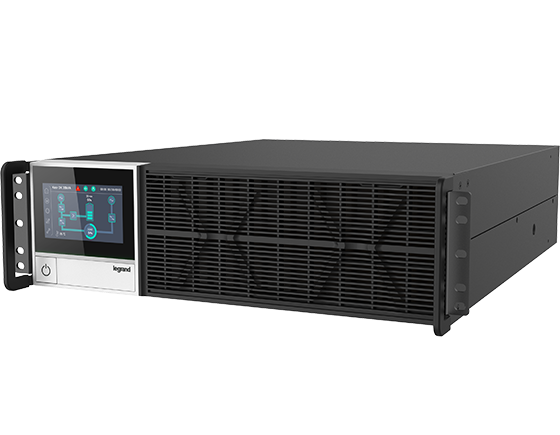

It delivers a rated power up to 10kVA equipped with VRLA or lithium batteries, contained in a specific compartment inside the UPS or in one or more external cabinets. Rack 10-20 kva
Keor DK, in the rack version is equipped with a user-friendly 4.3-inch LCD touch screen.
It delivers a rated power of 10-15-20kVA equipped with VRLA or lithium batteries, contained in external cabinet. Energy saving

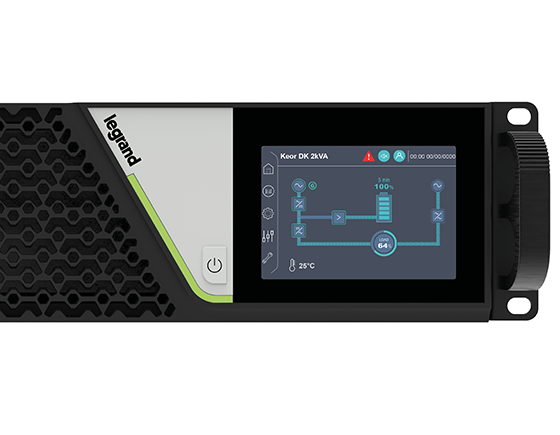

Unity power factor for a maximum real power with a peak efficiency of 96%, reducing operational costs and environmental impact. Touch screen LCD

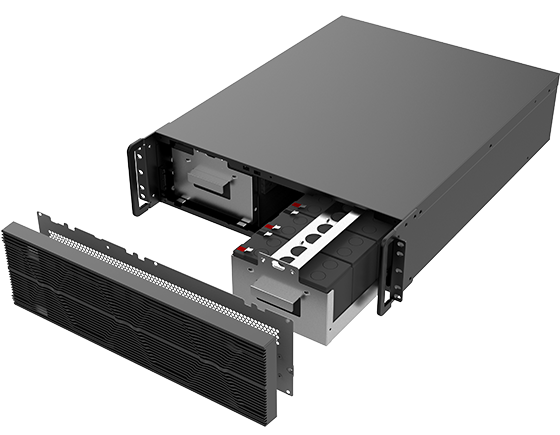

Easy-to-use solution with interactive icons for quick navigation. Built-in gravity sensor for automatic screen rotation based on UPS orientation. Plug&Play
Easy UPS set-up and maintenance with hot-swappable battery block for easy UPS extraction.
